Bootable media

Bootable media

Bootable media is a physical media (CD, DVD, USB flash drive, or other removable media supported by the machine's BIOS as a boot device) that allows you to run the protection agent either in a Linux-based environment or a Windows Preinstallation Environment (WinPE), without the help of an operating system.

Bootable media is most often used to:

• Recover an operating system that cannot start
• Access and back up the data that has survived in a corrupted system
• Deploy an operating system on bare metal
• Create basic or dynamic volumes on bare metal
• Back up sector-by-sector a disk with an unsupported file system
• Back up offline any data that cannot be backed up online – for example, because the data is locked by a running application or because the access to it is restricted.

A machine can also be booted by using the network boot from Acronis PXE Server, Windows Deployment Services (WDS) or Remote Installation Services (RIS). These servers with uploaded bootable components can be thought of as a kind of bootable media too. You can create bootable media or configure the PXE server or WDS/RIS by using the same wizard.

Create a bootable media or download a ready-made one?

By using the Bootable Media Builder, you can create your own bootable media (Linux-based or WinPE-based) for Windows, Linux or macOS computers. For a fully-featured bootable media, you need to specify your Acronis Cyber Protect license key. Without this key, your bootable media will be capable of performing only recovery operations.

Also, you can download a ready-made bootable media (Linux-based only). You can use the downloaded bootable media only for recovery operations and access to Acronis Universal Restore. You cannot back up data, validate or export backups, manage disks, or use scripts with it. Downloaded bootable media is not suitable for macOS computers.

To download a ready-made bootable media

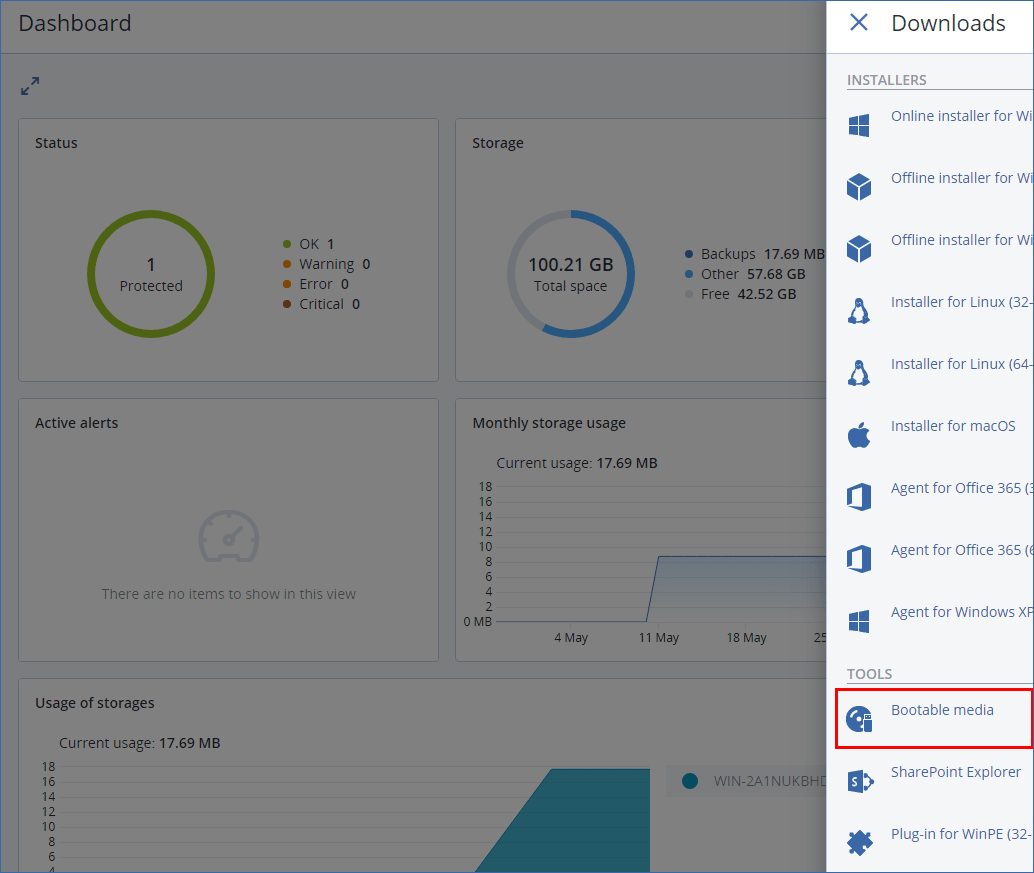

1. In the Cyber Protect web console, click the account icon in the top-right corner, and then click Downloads.

2. Select Bootable media.



You can burn the downloaded ISO file to a CD/DVD or create a bootable USB flash drive by using one of the free tools that are available online. Use ISO to USB or RUFUS if you need to boot an UEFI machine, or Win32DiskImager for a BIOS machine. In Linux, using the dd utility makes sense.

If the Cyber Protect web console is not accessible, you can download the ready-made bootable media from your account in Acronis Customer Portal:

1. Go to https://account.acronis.com.
2. Locate Acronis Cyber Protect, and then click Downloads.
3. On the page that opens, locate Additional downloads, and then click Bootable Media ISO (for Windows and Linux).

Linux-based or WinPE-based bootable media?

Linux-based

Linux-based bootable media contains a bootable protection agent based on Linux kernel. The agent can boot and perform operations on any PC-compatible hardware, including bare metal and machines with corrupted or non-supported file systems. The operations can be configured and controlled either locally or remotely, in the Cyber Protect web console.

A list of the supported by Linux-based media hardware is available at: http://kb.acronis.com/content/55310.

WinPE-based

WinPE-based bootable media contains a minimal Windows system called Windows Preinstallation Environment (WinPE) and Acronis Plugin for WinPE, that is, a modification of the protection agent that can run in the preinstallation environment.

WinPE proved to be the most convenient bootable solution in large environments with heterogeneous hardware.

Advantages:

• Using Acronis Cyber Protect in Windows Preinstallation Environment provides more functionality than using Linux-based bootable media. Having booted PC-compatible hardware into WinPE, you can use not only a protection agent, but also PE commands and scripts, and other plugins that you have added to the PE.
• PE-based bootable media helps overcome some Linux-related bootable media issues such as support for certain RAID controllers or certain levels of RAID arrays only. Media based on WinPE 2.x and later allow dynamic loading of the necessary device drivers.

Limitations:

• Bootable media based on WinPE versions earlier than 4.0 cannot boot on machines that use Unified Extensible Firmware Interface (UEFI).
• When a machine is booted with a PE-based bootable media, you cannot select optical media such as CD, DVD, or Blu-ray Discs (BD) as a backup destination.
