Data protection map

This feature is available with the Advanced Backup pack.

The data protection map feature allows you to discover all data that are important for you and get detailed information about number, size, location, protection status of all important files in a treemap scalable view.

Each block size depends on the total number/size of all important files that belong to a customer/machine.

Files can have one of the following protection statuses:

Critical – there are 51-100% of unprotected files with the extensions specified by you that are not being backed up and will not be backed up with the existing backup settings for the selected machine/location.
Low – there are 21-50% of unprotected files with the extensions specified by you that are not being backed up and will not be backed up with the existing backup settings for the selected machine/location.
Medium – there are 1-20% of unprotected files with the extensions specified by you that are not being backed up and will not be backed up with the existing backup settings for the selected machine/location.
High – all files with the extensions specified by you are protected (backed up) for the selected machine/location.

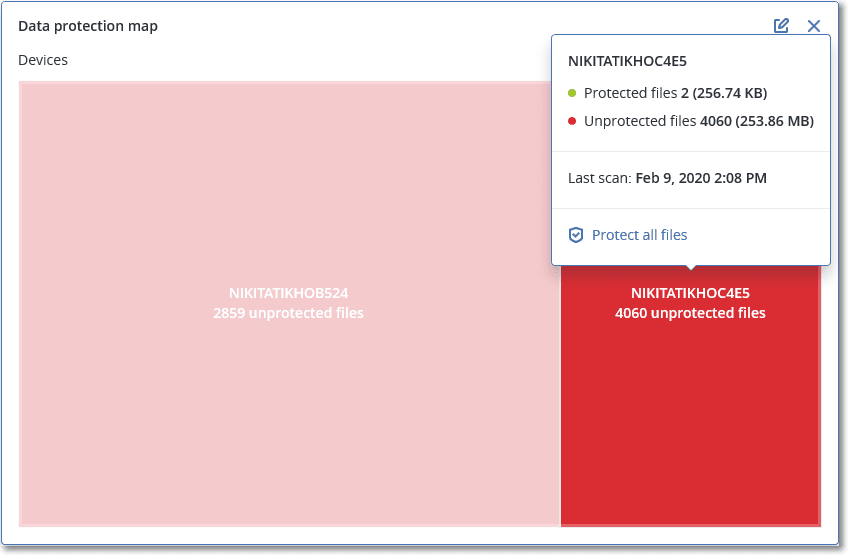

The results of the data protection examination can be found on the monitoring dashboard, in the Data Protection Map widget, a treemap widget that shows details on a machine level:

Machine level – shows information about the protection status of important files per machines of the selected customer.

To protect files that are not protected, hover over the block and click Protect all files. In the dialog window, you can find information about the number of unprotected files and their location. To protect them, click Protect all files.

You can also download a detailed report in CSV format.
